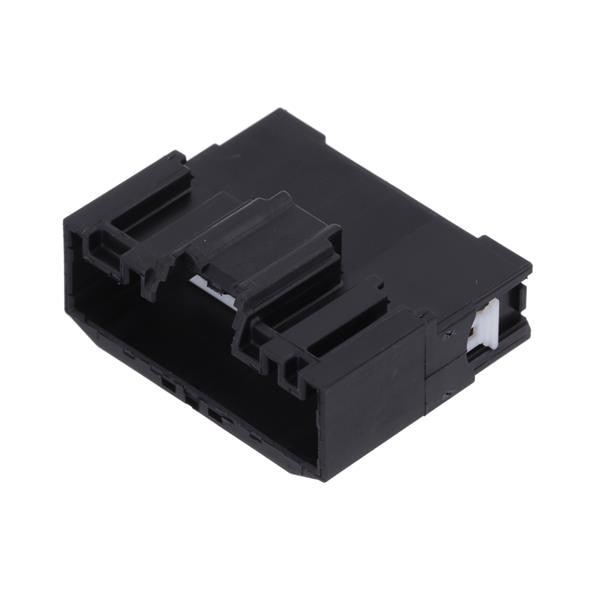

CID1241U-HY-11 Original Yazaki 7288-3682-30 Hybrid 24 Way Male Connector for Ford Network Gateway Smart Data Link Module

CID1241U-HY-11 Original Yazaki 7288-3682-30 Hybrid 24 Way Male Connector for Ford Network Gateway Smart Data Link Module

by Connector ID
$0 USD
$19.83 - $19.83
$19.83 USD
$19.83 - $19.83
$19.83
Product Type:  Connector with terminal lock
Minimum Order Qty:  1 piece
Part Number CID1241U-HY-11
Number of cavities: 24
Product Family: Hybrid [(22 x 0.64mm) + (2 x 2.8 mm)]
Sealed/Unsealed: Unsealed
Gender: Male
Color: Black
Compliance:  RoHS, REACH

Reference PN:

Part Number:   7288-3682-30

Associated Components:

The following components are used with this connection system and are sold separately.

Terminal, 0.64 mm, 0.3 - 0.5 mm² (22-20 AWG) CID309-0.64-MU3
Terminal, 0.64 mm,  0.75 mm² (18 AWG) CID309-0.64-MU4
Terminal, 2.8 mm, 0.75 - 1.0  mm² (18-16 AWG) CID101-2.8-MU2
Terminal, 2.8 mm, 1.5 - 2.5 mm² (14 AWG) CID101-2.8-MU3

Mating PN:

Part Number:   CID1241U-HY-21
We have 6 in stock. Volume Pricing Available
