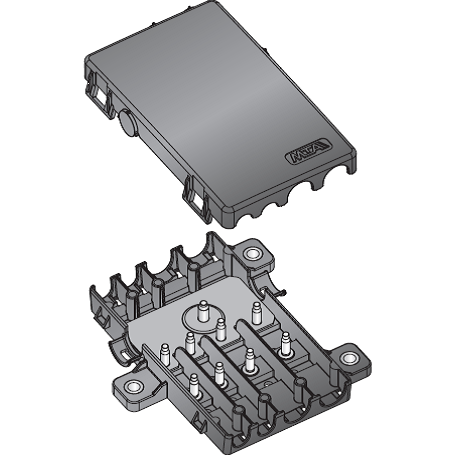

MTA 0300552 Pre-Mounted Housing for 4 MidiVAL with Cover, Bus Bar and Self Locking Units

MTA 0300552 Pre-Mounted Housing for 4 MidiVAL with Cover, Bus Bar and Self Locking Units

by MTA
$0 USD
$41.35 - $41.35
$41.35 USD
$41.35 - $41.35
$41.35
Specifications:
Product Type:  Power Distribution Unit  - 4 MidiVal fuses
Minimum Order Qty:  1 piece
Brand: MTA
Part Number 0300552
Stud Size: M5
Fuse Type: MidiVal
Sealed/Unsealed: Unsealed
Hardware Included: Bus Bar & Cover: Washer & nuts
Compliance:  RoHS, REACH

Associated Components:

The following components used with this connection system and are sold separately

DESCRIPTION MTA PN
Terminal, M5 Ring, MIDI, 2.5 - 4.0 mm² (14-12 AWG) 1708240-L
Terminal, M5 Ring, MIDI, 6.0 - 8.0 mm² (10-8 AWG) 1708245-L
Terminal, M6 Ring, MIDI, 6.0 - 8.0 mm² (10-8 AWG) 1708246-L
Terminal, M5 Ring, MIDI, 10.0 - 16.0 mm² (6 AWG) 1708250-L
MTA PN DESCRIPTION
0702030 30 Amp, MidiVAL, Orange, Tin Plated Zinc Alloy
0702040 40 Amp, MidiVAL, Green, Tin Plated Zinc Alloy
0702050 50 Amp, MidiVAL,  Red, Tin Plated Zinc Alloy
0702060 60 Amp, MidiVAL, Yellow, Tin Plated Zinc Alloy
0702070 70 Amp, MidiVAL, Brown, Tin Plated Zinc Alloy
0702080 80 Amp, MidiVAL, White, Tin Plated Zinc Alloy
0702100 100 Amp, MidiVAL, Blue, Tin Plated Zinc Alloy
0702125 125 Amp MidiVAL, Pink, Tin Plated Zinc Alloy
0708030 30 Amp, MidiVAL, Orange, Tin Plated Cu Alloy
0708040 40 Amp, MidiVAL, Green, Tin Plated Cu Alloy
0708050 50 Amp MidiVal, Red, Tin Plated Cu Alloy
0708060 60 Amp, MidiVAL, Yellow, Tin Plated Cu Alloy
0708070 70 Amp, MidiVAL, Brown, Tin Plated Cu Alloy
0708080 80 Amp, MidiVAL, White, Tin Plated Cu Alloy
0708100 100 Amp, MidiVAL, Blue, Tin Plated Cu Alloy
0708125 125 Amp MidiVAL, Pink, Tin Plated Cu Alloy
0708150 150 Amp MidiVAL, Grey, Tin Plated Cu Alloy
0708175 175 Amp MidiVAL,  Light Brown, Tin Plated Cu Alloy
0708200 200 Amp MidiVAL, Violet, Tin Plated Cu Alloy
We have 21 in stock. Volume Pricing Available
