GEP PTB-38A-05 Heavy Duty 3/8" Black (Negative) Pass through Stud
Original price
$23.48
-
Original price
$23.48
Original price
$23.48
$23.48
-
$23.48
Current price
$23.48

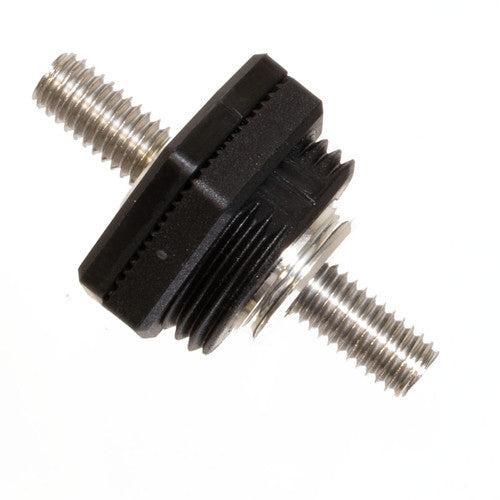

GEP's PTB-38A-05 is a military grade pass though stud (3/8") which feeds ground from the engine or chassis to the cabin.
GEP PTB-38A-05 Details:
| Product Type: | Power Pass Through, Stud |
| Minimum Order Qty: | 1 piece |
| Part Number | PTB-38A-05 |
| Stud Size: | 3/8"-16 |
| Application: | Ground Feed Bulkhead |
| Color: | Black |
| Electrical Rating: | 400 Amps (2/0 cable or larger) |
| Materials: | |
| Body: | Nylon 66 -Glass Filled |
| Conductive Core: | 110 Copper |
| Studs: | Stainless Steel |
| Locknut: | Nylon 66 |
| Terminal Retaining Nuts: | Zinc plated steel |
| Compliance: | RoHS, REACH |
| Sales Drawing: | PTX-38A-05 |
| Positive (Red) Pass-Thru: | PTR-38A-05 |
Associated Components:
The following components used with this connection system and are sold separately
| Part Number | Description |
| C14-1003 | Gasket - Black |
