CID008-M6-CNR4 Captured Nut Ring Terminal M6

CID008-M6-CNR4 Captured Nut Ring Terminal M6

by Connector ID
Description
        • Product Type: Terminal
        • Min Order Qty: 1 reel = 1,400 pcs
        • Connector ID Part Number: CID008-M6-CNR4
        • Product Family:  Captive Nut Ring Terminal
        • Stud Size: M6
        • Wire Size Range:  4.0 - 6.0 mm²  (10 AWG)
        • Sealed/Unsealed: Unsealed
        • Material: Copper Alloy
        • Plating: Tin

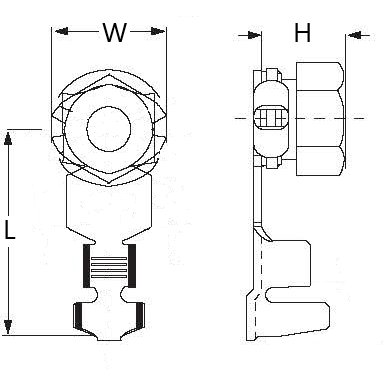

        • Dimensions: L: 22.0 mm / W: 12.0 mm / H: 8.5 mm
        • Alternate Packaging: CID008-M6-CNR4-L (Loose Piece)
We have 0 in stock. Volume Pricing Available
