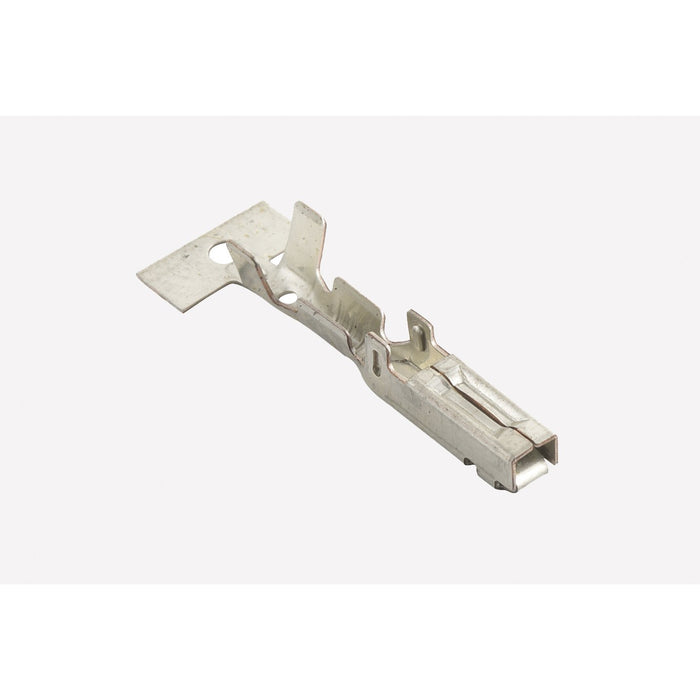

100119R Direct Equivalent to Yazaki 7116-1472
by Connector ID
- Description
- Associated Wire Seals
- Mating Terminals
Description
- Product Type: Terminal
- Minimum Order Qty: 1 reel = 3,000 units
- Connector ID Part Number: 100119R
- Brand: Yazaki Equivalent
- Drop-in Replacement for Yazaki Part No.: 7116-1472
- Product Family: SWP 070 (1.8mm)
- Wire Size Range: 0.85 - 1.25 sqmm
- Sealed/Unsealed: Sealed
- Gender: Female
- Material: Copper Alloy
- Plating: Tin
- Dimensions: L: 18.1 mm / W: 2.7 mm / H: 2.7 mm / E: 7.0 mm
Associated Wire Seals
100092 Single WIre Seal, 1.5 - 2.1 Wire Insul Dia., Silicone, Black
Mating Terminals
100051 Term, Male, SWP 070 (1.8 mm), 0.30 - 0.50 sqmm, Tin Plated, loose piece
100051R Term, Male, SWP 070 (1.8 mm), 0.30 - 0.50 sqmm, Tin Plated, Reel
100053 Term, Male, SWP 070 (1.8 mm), 1.25 - 2.0 sqmm, Tin Plated, loose piece
100053R Term, Male, SWP 070 (1.8 mm), 1.25 - 2.0 sqmm, Tin Plated, Reel
