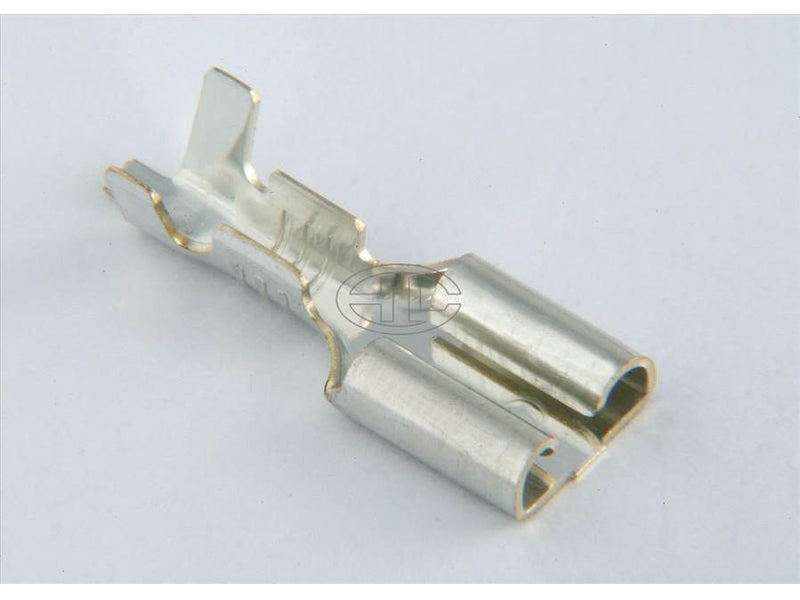

CID102H-6.3-FS4-L Female Terminal, 6.3 mm, 3.0 mm² Unsealed, Tin Plated

Specifications

• Product Type: Terminal
• Min Order Qty:  1 piece
• Connector ID Part Number: CID102H-6.3-FS4-L
• Equivalent Brand: Yazaki
• Yazaki Part No: 7116-2642-02
• Product Family:  250 Series  (6.3 Series)
• Wire Size Range: 3.0 mm² (12 AWG)
• Sealed/Unsealed: Unsealed
• Gender:  Female
• Material: Copper Alloy
• Plating: Pre-Tin

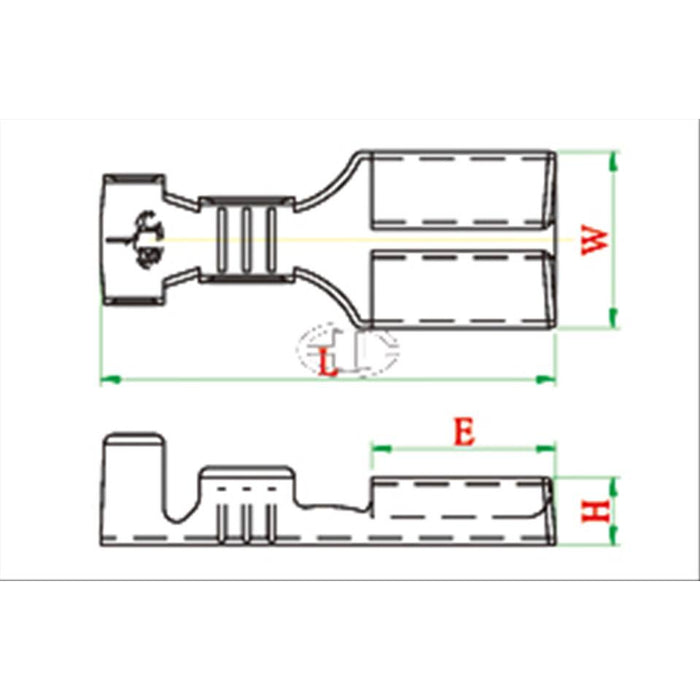

• Dimensions: L: 19.4 mm / W: 7.5 mm / H: 2.9 mm / E: 7.8 mm
• HTS Code: 853690400
• Compliance: REACH & RoHS
