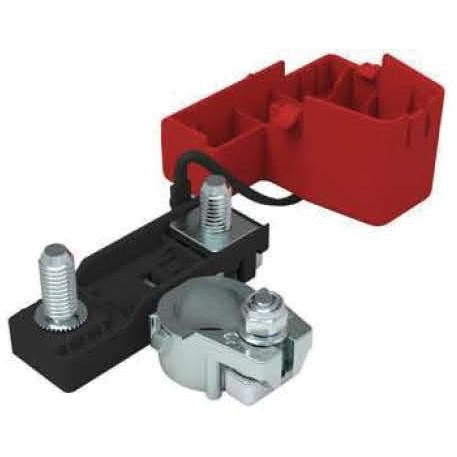

MTA 0301230 Direct Left Battery Mount for 1 Power/MegaVal Fuse

MTA 0301230 Direct Left Battery Mount for 1 Power/MegaVal Fuse

by MTA
$0 USD
$24.45 - $24.45
$24.45 USD
$24.45 - $24.45
$24.45

    Available in 2 different versions, with casted battery terminals in Z-axis, right or left side, this battery distribution unit has compact dimensions that make it versatile and easy to be placed. The cover is tethered to the body to ensure it won't be displaced. Quality certified by stringent validation testing. Accommodates 1 MegaVAL fuse.

    Specifications:
    Product Type:  Left-Hand Die-Cast Version Battery Mounted PDM
    Minimum Order Qty:  1 piece
    Brand: MTA
    Part Number 0301230
    Stud Size: M8
    Fuse Type: MegaVal or PowerVal
    Sealed/Unsealed: Unsealed
    Compliance:  RoHS, REACH
    Right-Hand Version PN 0301229

    Associated Components:

    The following components used with this connection system and are sold separately

    DESCRIPTION MTA PN
    Terminal, M8 Ring, MEGA G90, 10.0 - 20.0 mm² 1608180-L
    Terminal, M8 Ring, MEGA G90, 25.0 - 35.0 mm² 1608190-L
    Terminal, M8 Ring, MEGA, 10.0 - 20.0 mm² 1708110-L
    Terminal, M8 Ring, MEGA, 25.0 - 35.0 mm² 1708120-L
    Terminal, M8 Ring, MEGA, 25.0 - 40.0 mm² 1608196-L
    DESCRIPTION MTA PN
    100A MegaVal, Yellow, Tin Plated Zinc  0701100
    125A MegaVal, Green, Tin Plated Zinc  0701125
    150A MegaVal, Orange, Tin Plated Zinc  0701150
    175A MegaVal, White, Tin Plated Zinc  0701175
    200A MegaVal, Blue, Tin Plated Zinc  0701200
    225A MegaVal, Light Brown, Tin Plated Zinc  0701225
    250A MegaVal, Pink, Tin Plated Zinc 0701250
    100A MegaVal, Yellow, Tin Plated Copper 0711100
    125A MegaVal, Green, Tin Plated Copper 0711125
    150A MegaVal, Orange, Tin Plated Copper 0711150
    175A MegaVal, White, Tin Plated Copper 0711175
    200A MegaVal, Blue, Tin Plated Copper 0711200
    225A MegaVal, Light Brown, Tin Plated Copper 0711225
    250A MegaVal, Pink, Tin Plated Copper 0711250
    300A MegaVal, Gray, Tin Plated Copper 0711300
    400A MegaVal, Violet, Tin Plated Copper 0701401
    500A MegaVal, Brown, Tin Plated Copper 0701600
    DESCRIPTION MTA PN
    CAL.1 PowerVAL, Gray, Tin Plated Zinc Alloy 0701350
    CAL.2 PowerVAL, Black, Tin Plated Zinc Alloy 0701400
    CAL.3 PowerVAL,  Red, Tin Plated Copper 0701450
    CAL.4 PowerVAL, Brown, Tin Plated Copper 0701500
    CAL.5 PowerVAL, Wheat Gray, Tin Plated Copper 0701700
    We have 38 in stock. Volume Pricing Available
