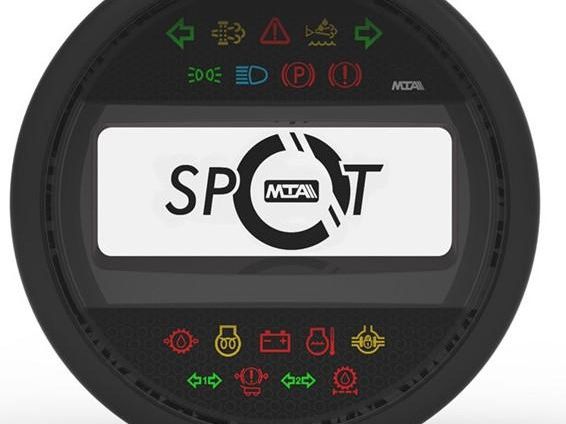

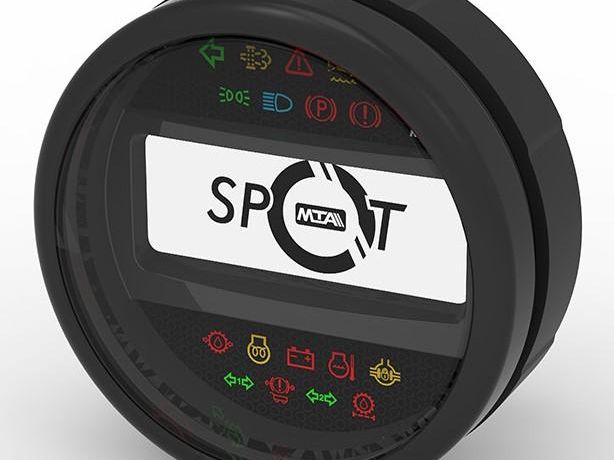

SPOT Dashboard - (3.1" LCD)
by MTA
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
SPOT dashboard has a compact circular dimension of just 106 mm diameter and an IP66 rating for protection, making it ideal for off-highway and agricultural applications on compact vehicles. The strength of the SPOT dashboard is the proprietary MTA Studio software tool, that enables the customer to customize the SPOT dashboard to meet the fast-changing production needs without delay or costly software re-writes.
-
Product Type: SPOT Customizable dial plate, front bezel, and internal mask
- MTA PN: SPOT
- Brand: MTA S.p.A.
-
Min Order Qty: 1 unit
-
Dimensions: 100 mm display dia. / 107 mm external frame dia.
- Housing Material: ABS Plastic with Gore Membrane
- Display: 3.1" dot matrix LCD 160 x 56 pixel with Antifog treatment
- Indicators: 18
- Inputs: 20
- Outputs: 1 (optional)
- Power Supply: 12 Vdc
- CAN Interface: 1
- Ethernet Interface: 1
- Real-Time Clock: Optional
- Additional Feature: Buzzer
- Connector: 26 Pin TE Superseal
- Protection Class: IP66 Front, IP65 Rear
- Programming System: MTAStudio
Mating Connector
