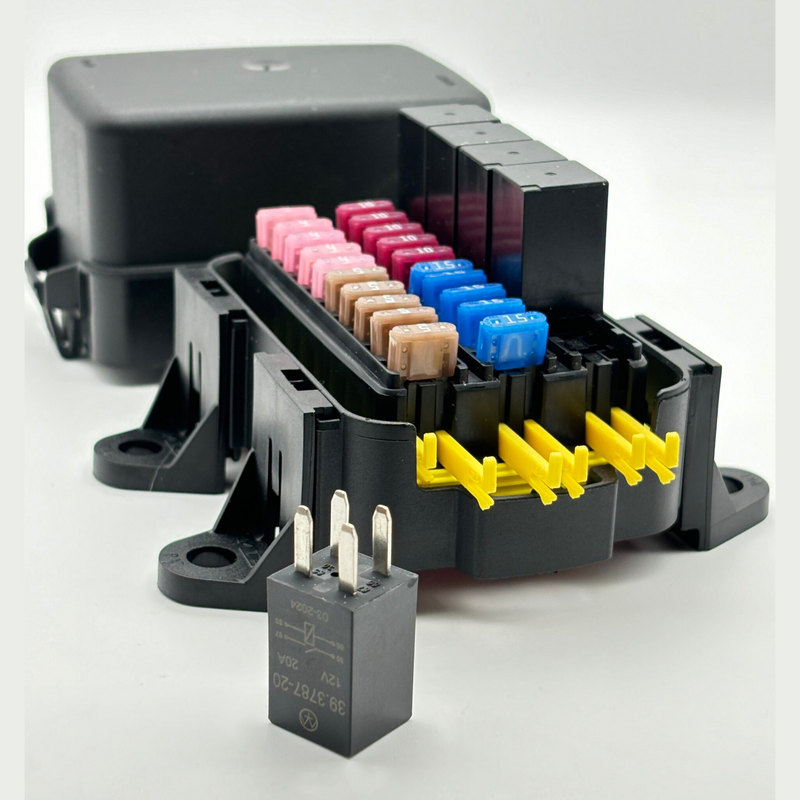

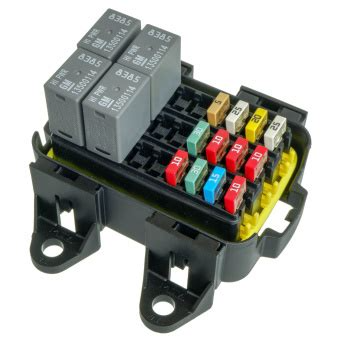

MTA 0301370 Sealed Power Distribution Module for 30 Minival Fuses /10 Micro-Relays
by MTA
Original price
$20.29
-
Original price
$20.29
Original price
$20.29
$20.29
-
$20.29
Current price
$20.29

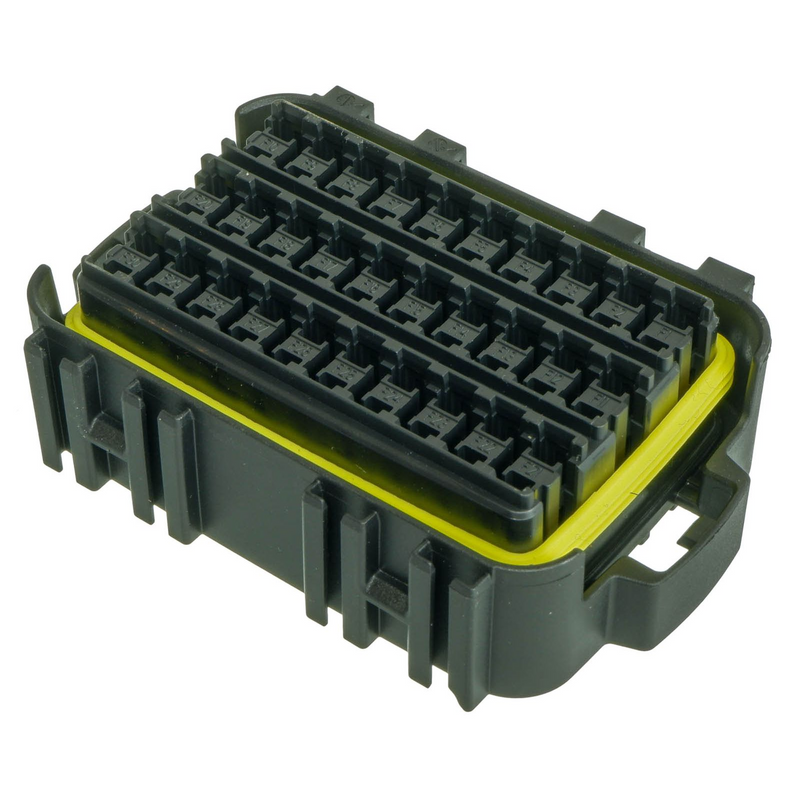

This waterproof power distribution module is constructed with 60 sealed 2.8 mm cavities so it will accept a wide range of 280 devices such as miniVal fuses, 280 footprint relays. All of the waterproof modules from MTA have molded locking features that allow for multiple units to be ganged or connected together based on the amount and type of power distribution content required for the application.
MTA 0301370 Waterproof PDM Details:
This waterproof power distribution module
| Product Type: | Sealed Power Distribution Module |
| Minimum Order Qty: | 1 piece |
| Brand: | MTA |
| Part Number | 0301370 |
| Fuse Type: | MiniVal |
| Cavitiy Size: | 2.8 mm (280 footprint) |
| No. of Cavities: | 60 |
| Sealed/Unsealed: | Sealed |
| Color: | Black |
| Compliance: | RoHS, REACH |
Reference PN:
| Part Number: | 0101370 | Aftermarket packaging |
Associated Components:
The following components used with this connection system and are sold separately
| MTA PN | DESCRIPTION |
| 0301372 | Secondary Lock ( 6 pcs required per module) |

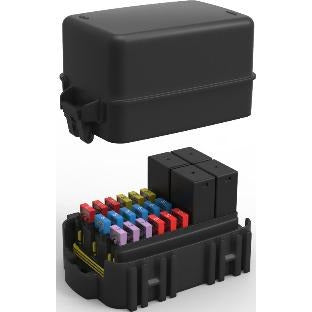

| 0301371 | Top Cover |
| 0300691 | Mounting Leg - Female (2 pcs reqd per module) |
| 0300690 | Mounting Leg - Male (2 pcs reqd per module) |
Associated Terminals & Wire Seals
| MTA PN | DESCRIPTION |
| 1708337-L | Terminal, Sealed 2.8 mm, 0.35 - 0.75 mm² (22-20 AWG) |
| 1708338-L | Terminal, Sealed 2.8 mm, 1.0 - 2.0 mm² ( 18-16 AWG) |
| 1708339-L | Terminal, Sealed 2.8 mm, 2.5 - 4.0 mm² ( 14-12 AWG) |
| 4550748 | Wire Seal, 2.8 mm, Wire Insul Dia. 1.2 - 2.1 mm, Red |
| 4550747 | Wire Seal, 2.8 mm, Wire Insul Dia. 2.2 - 3.0 mm, Green |
| 4550749 | Wire Seal, 2.8 mm, Wire Insul Dia. 3.1 - 3.7 mm, Gray |
| 4550750 | Cavity Plug, 2.8 mm, Black |
MiniVal Fuses
| MTA PN | DESCRIPTION |
| 0705090 | 2A MiniVAL Fuse, Gray |
| 0705100 | 3A MiniVAL Fuse, Voilet |
| 0705101 | 4A MiniVAL Fuse, Pink |
| 0705110 | 5A MiniVAL Fuse, Gray |
| 0705120 | 7.5A MiniVAL Fuse, Gray |
| 0705130 | 10A MiniVAL Fuse, Gray |
| 0705140 | 15A MiniVAL Fuse, Gray |
| 0705150 | 20A MiniVAL Fuse, Gray |
| 0705160 | 25A MiniVAL Fuse, Gray |
| 0705170 | 30A MiniVAL Fuse, Gray |
