GEP JB625-11-32 Insulated Stud Junction Block, 11 Position
Original price
$22.15
-
Original price
$22.15
Original price
$22.15
$22.15
-
$22.15
Current price
$22.15

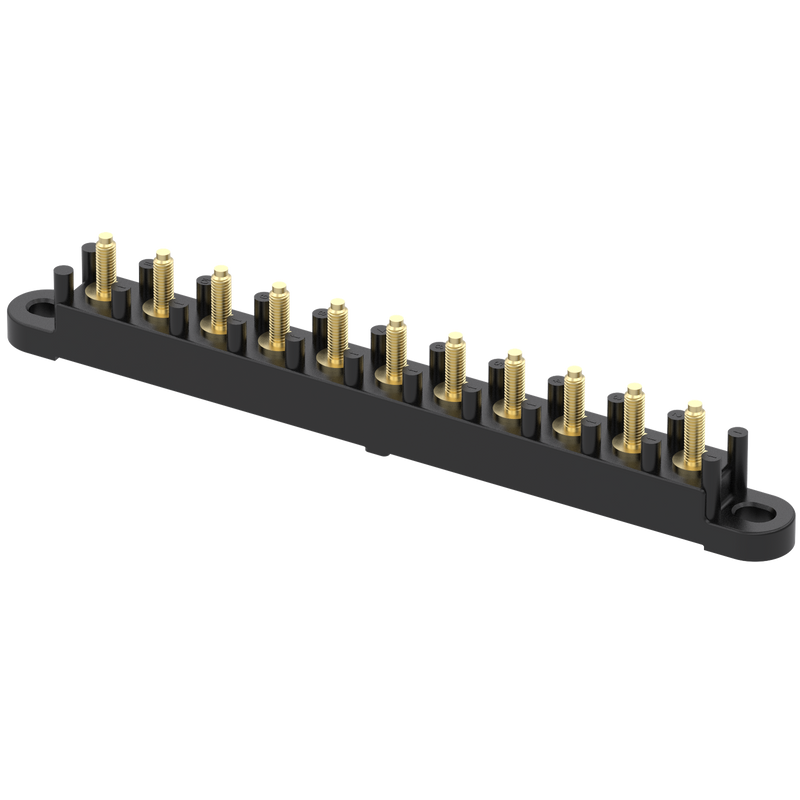

GEP's insulated Stud junction blocks are ideal for discrete or bussed wiring applications in commercial vehicles. The JB625-11 is a 11 position stud block.
GEP JB625-11-32 Stud Junction Block Details:
| Product Type: | Power Pass Through, Stud |
| Minimum Order Qty: | 1 piece |
| Part Number | JB625-11 |
| Number of Studs: | 11 |
| Stud Size: | #10-24 |
| Temperature Rating: | 120 ⁰C (250 ⁰F) |
| Electrical Rating: | 30 Amps, 300 V |
| Materials: | |
| Body: | Nylon 66 |
| Studs: | #10-24, Brass |
| Compliance: | RoHS, REACH |
| Sales Drawing: | JB625-3-32 |

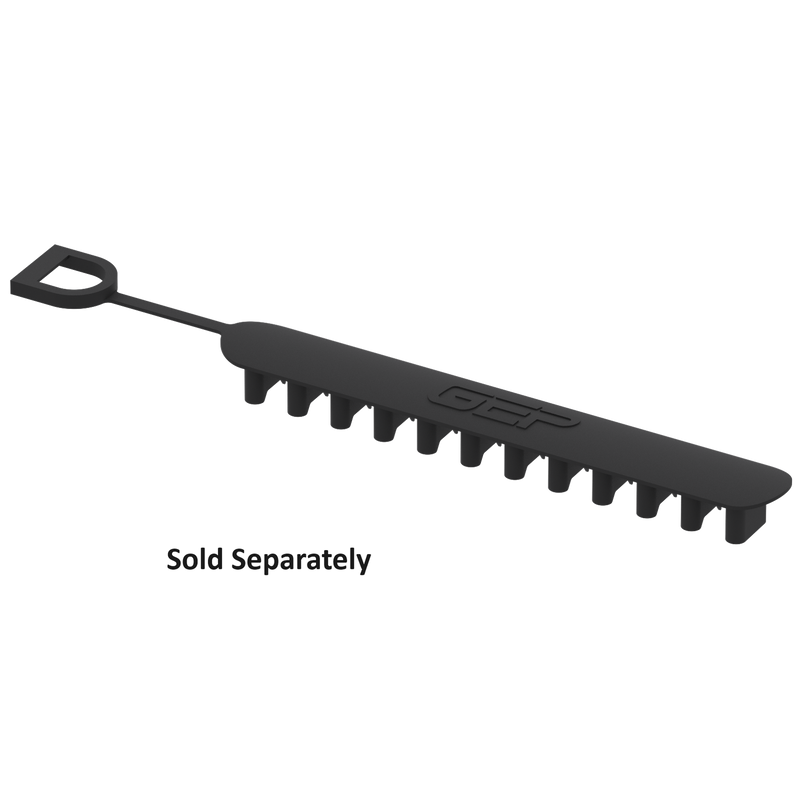

| Optional Cover: | JB625-11-C |
Optional Bus Bars:
The following bars are used with this terminal block and are sold separately.
| 2 Position Bus Bar | JB625-2-B |
| 3 Position Bus Bar | JB625-3-B |
| 4 Position Bus Bar | JB625-4-B |
| 5 Position Bus Bar | JB625-5-B |
| 6 Position Bus Bar | JB625-6-B |
| 7 Position Bus Bar | JB625-7-B |
| 8 Position Bus Bar | JB625-8-B |
| 9 Position Bus Bar | JB625-9-B |
| 10 Position Bus Bar | JB625-10-B |
| 11 Position Bus Bar | JB625-11-B |
