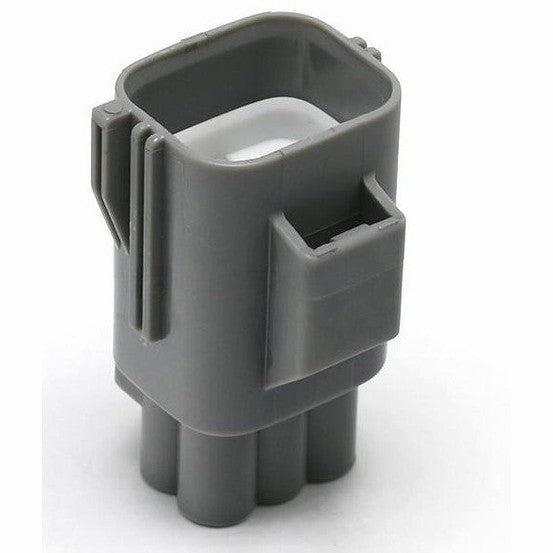

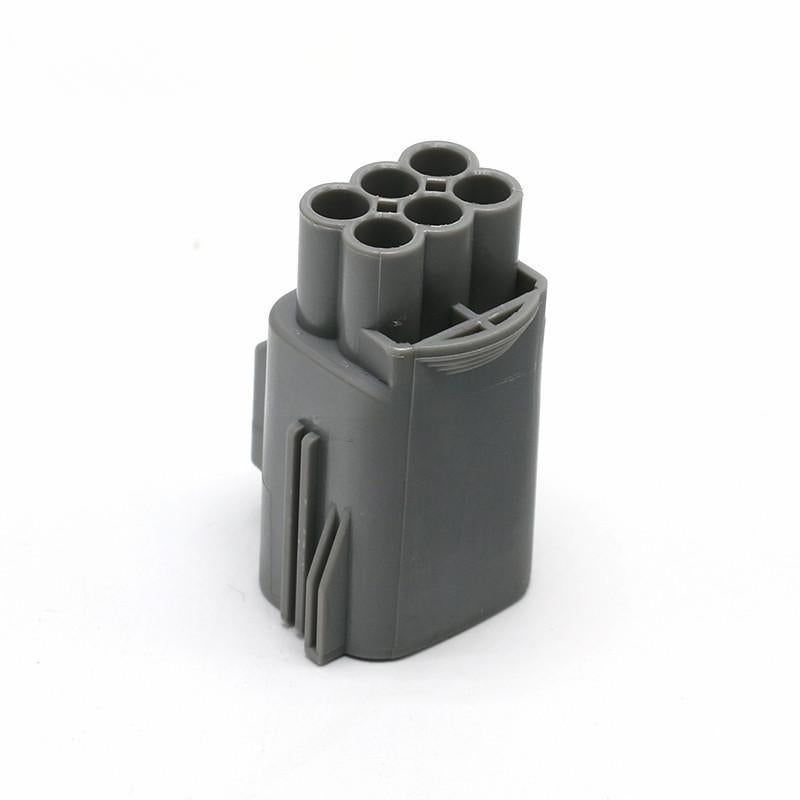

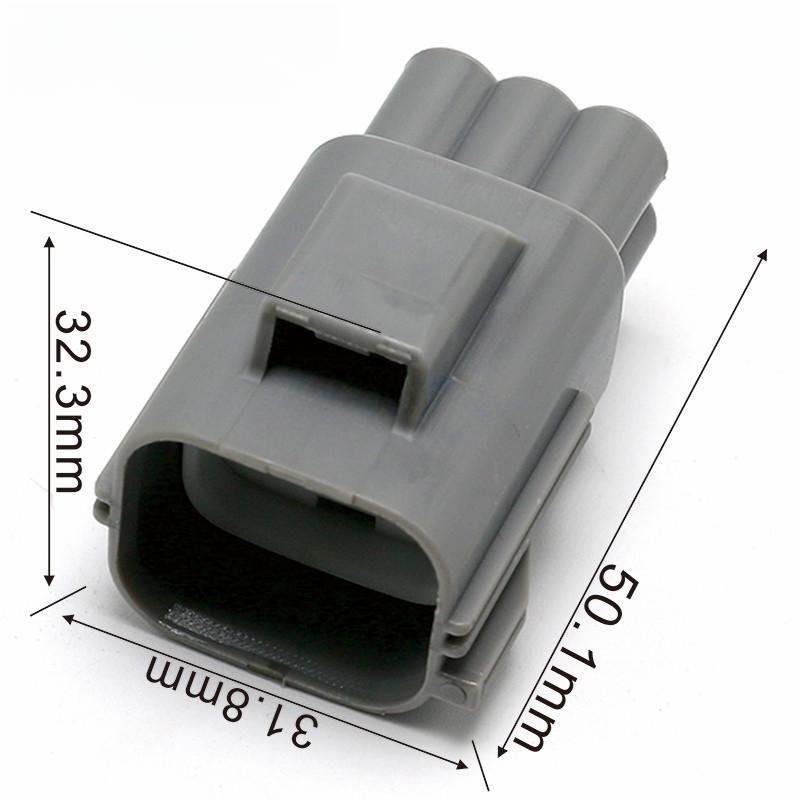

CID1061-2.8-11 Direct Equivalent to Yazaki 7282-5577-10 Connector 6W Male, 2.8 mm Series
by Connector ID
Original price
$4.35
-
Original price
$4.35
Original price
$4.35
$4.35
-
$4.35
Current price
$4.35
| Product Type: | Connector with terminal lock |
| Minimum Order Qty: | 1 piece Yazaki 7282-5574-10 |
| Part Number | CID1061-2.8-11 |
| Number of cavities: | 6 |
| Product Family: | 2.8 Series |
| Sealed/Unsealed: | Sealed |
| Gender: | Male |
| Color: | Gray |
| Compliance: | RoHS, REACH |
Reference PN:
| Part Number: | 7282-5571-10 | |
| Ford Part Number: | XW4T-14A624-CAA | Ford Supper Duty End of Frame Rail |
Associated Components:
| Terminal 0.3 - 0.5 mm² (22-20 AWG) | CID101-2.8-MS1 |
| Terminal 0.75 - 1.0 mm² (18-16 AWG) | CID101-2.8-MS2 |
| Terminal 2.0 mm² (14 AWG) | CID101-2.8-MS3 |
| Terminal 3.0 - 4.0 mm² (12 AWG) | CID101-2.8-MS4 |
| Wire Seal, 1.2 - 1.9 mm wire dia., Green, Silicone | CID3111 |
| Wire Seal, 1.8 - 2.3 mm wire dia., Yellow, Silicone | CID3112 |
| Wire Seal 2.1 - 3.0 mm wire dia., White, Silicone | CID3113 |
| Wire Seal 3.10 - 3.40 mm wire dia, Gray, Silicone | CID3110 |
| Cavity Plug, 2.8 mm, Blue, Silicone | CID3114 |
Connector Kit:
| CID1061-2.8-11KIT | [(1 x Conn)+(8 x Terminals)+( 8 x Seals)+(2 Cav Plugs)] |
Mating PN:
| Part Number: | CID1061-2.8-21 |
