MTA offers 15 different modules and a variety of frames, covers, and brackets to build a wide range of flexible modular solutions for holding fuses, relays, and diodes. All of the modules are designed with secondary locks to guarantee maximum safety and high performance. They are built to resist stress and provide reliable technology.

Specifications:

Product Type:	Modular Power Distribution Unit
Min Order Qty:	1 piece
Brand:	MTA
Kit Part Number	0101600 0301600
Kit Includes:	(1 x 0301601 Mod)+(4 x 0301601 Sec Lock)+(1 x 0301602 Sec Lock)

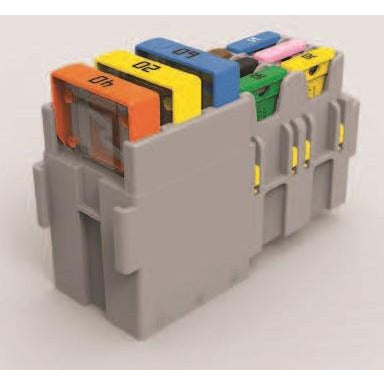

Design Layout:	(6) UniVAL Fuses + (3) MaxiVal Fuses
Product Family:	Gray Modules
Sealed/Unsealed:	Unsealed
Gender:	Female
Color:	Gray
Compliance:	RoHS, REACH

Associated Components:

The following components used with this connection system and are sold separately

DESCRIPTION	MTA PN
6.3 mm Terminal with Clip, 0.5 - 1.5 mm² (20,18,16 AWG)	1707920
6.3 mm Terminal with Clip, 2.0 - 3.0 mm² (14,12 AWG)	1707930
6.3 mm Terminal with Clip, 4.0- 6.0 mm² (10 AWG)	1707940
6.3 mm Bus Bar Terminal with Clip, 2.0 - 3.0 mm² (14,12 AWG)	1707932-L
6.3 mm Bus Bar Terminal with Clip, 4.0 - 6.0 mm² (10 AWG)	1707942-L
8.0 mm Terminal 1.5 - 2.5 mm² (14 AWG), CuZn-Sn	1707650-L
8.0 mm Terminal 4.0 - 6.0 mm² (10 AWG), CuZn-Sn	1707660-L
8.0 mm Terminal 8.0 - 10. 0 mm² (8 AWG), CuZn-Sn	1707670-L
8.0 mm Terminal 8.0 - 10. 0 mm² (8 AWG), CuNi-Sn	1707672-L
8.0 mm Terminal 16. 0 mm² (6 AWG), CuNi-Sn	1707671-L
Mounting Bracket for Single Module	0301580
Mounting Bracket for Two modules	0300699
Mounting Bracket, extended height	0301180
Mounting Brakcet, end-to-end	0301620
Mounting Frame for 4 module Flush Mount	0301520
Mounting Frame for 5 modules	0301450
Mounting Frame for 5 modules	0301706
Mounting Frame for 12 modules, Upright Mount	0301682
Mounting Frame for 12 modules, Flush Mount	0301680
Mounting Frame for 12 modules, Flush Mount	0301681
Cover for a single module	0301590
Cover for two adjacent modules	0301550
Cover for 4 way frame	0301530
Cover for 5 way frame	0301540

UniVal Fuses

DESCRIPTION	MTA PN
1A UniVal Fuse, Black	0700380
2A UniVal Fuse, Gray	0700390
3A UniVal Fuse, Violet	0710300
4A UniVal Fuse, Pink	0700301
5A UniVal Fuse, Light Brown	0710310
7.5A UniVal Fuse. Brown	0710320
10A UniiVal Fuse, Red	0710330
15A UniVal Fuse, Blue	0710340
20A Unival Fuse, Yellow	0710350
25A Unival Fuse, White	0710360
30A Unival Fuse, Green	0710370
40 Unival Fuse, Orange	0710375

MaxiVal Fuses

DESCRIPTION	MTA PN
20A MaxiVal Fuse, Yellow	0700900
30A MaxiVal Fuse, Green	0700910
40A MaxiVal Fuse, Orange	0700920
50A MaxiVal Fuse, Red	0700930
60A MaxiVal Fuse, Blue	0700940
70A MaxiVal Fuse. Light Brown	0700950
80A MaxiVal Fuse, White	0700960
100A MaxiVal Fuse, Violet	0700970
