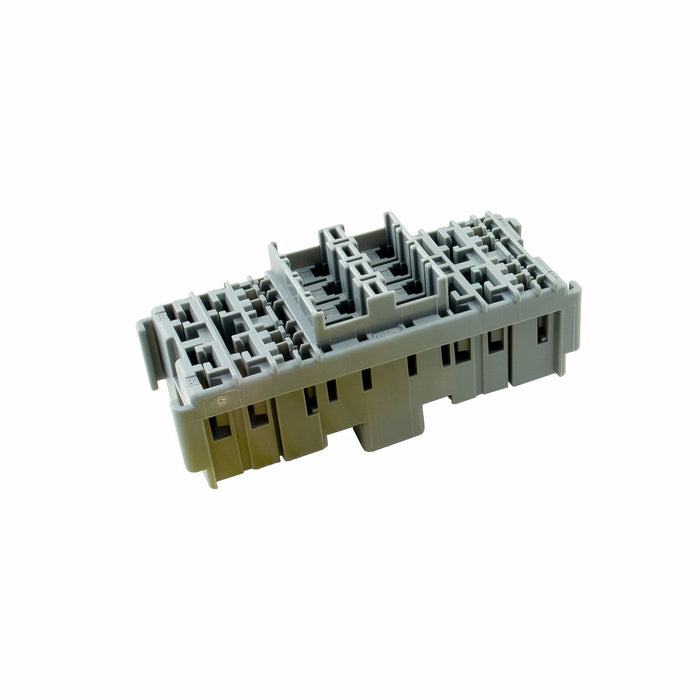

MTA 0301564 MiniVAL / Micro Relay Module
by MTA
Original price
$5.35
-
Original price
$5.35
Original price
$5.35
$5.35
-
$5.35
Current price
$5.35
MTA offers 15 different modules and a variety of frames, covers, and brackets to build a wide range of flexible modular solutions for holding fuses, relays, and diodes. All of the modules are designed with secondary locks to guarantee maximum safety and high performance. They are built to resist stress and provide reliable technology.
| Product Type: | Modular Power Distribution Unit |
| Minimum Order Qty: | 1 piece |
| Brand: | MTA |
| Part Number | 0301564 |
| Number of cavities: | 36 |
| Design Layout: | 8 miniVal Fuses + 4 Micro-Relays |
| Product Family: | Gray Modules |
| Sealed/Unsealed: | Unsealed |
| Gender: | Female |
| Color: | Gray |
| Compliance: | RoHS, REACH |
Reference PN:
| Part Number: | 0101564 | Aftermarket Kit |
Associated Components:
| DESCRIPTION | MTA PN |
| Secondary Lock, Yellow (1 reqd lock per module) | 0301566 |
| 28 mm Terminal 0.5 - 0.75 mm² (20-18 AWG) | 1708330-L |
| 2.8 mm Terminal 1.0 - 2.0 mm² (16-14 AWG) | 1708331-L |
| 2.8 mm Terminal 2.5 - 4.0 mm² (12 AWG) | 1708332-L |
| 2.8 mm Bus Bar Terminal 1.0 - 2.0 mm² (16-14 AWG) | 1708335-L |
| 2.8 mm Bus Bar Terminal 2.5 - 4.0 mm² (12 AWG) | 1708336-L |
| 4.8 mm Terminal 0.35 - 0.75 mm², (22-20 AWG) | 1708402-L |
| 4.8 mm Terminal 0.5 -1.0 mm² (20-16 AWG) | 1708400-L |
| 4.8 mm Terminal 1.5 - 2.5 mm² (14 AWG) | 1708401-L |
| 6.3 mm Terminal 0.35 - 0.75 mm² (22-20 AWG) | 1708500-L |
| 6.3 mm Terminal 0.75 - 1.5 mm² (18-16 AWG) | 1708501-L |
| 6.3 mm Terminal 2.0 - 3.0 mm² (14-12 AWG) | 1708502-L |
| 6.3 mm Terminal 4.0 - 6.0 mm² (10 AWG) | 1708503-L |
| Mounting Bracket for Single Module | 0301580 |
| Mounting Bracket for Two modules | 0300699 |
| Mounting Bracket, extended height | 0301180 |
| Mounting Brakcet, end-to-end | 0301620 |
| Mounting Frame for 4 module Flush Mount | 0301520 |
| Mounting Frame for 5 modules | 0301450 |
| Mounting Frame for 5 modules | 0301706 |
| Mounting Frame for 12 modules, Upright Mount | 0301682 |
| Mounting Frame for 12 modules, Flush Mount | 0301680 |
| Mounting Frame for 12 modules, Flush Mount | 0301681 |
| Cover for a single module | 0301590 |
| Cover for two adjacent modules | 0301550 |
| Cover for 4 way frame | 0301530 |
| Cover for 5 way frame | 0301540 |
MiniVal Fuses:
| MTA PN | Description |
| 0705090 | 2A MiniVAL Fuse, Gray |
| 0705100 | 3A MiniVAL Fuse, Voilet |
| 0705101 | 4A MiniVAL Fuse, Pink |
| 0705110 | 5A MiniVAL Fuse, Gray |
| 0705120 | 7.5A MiniVAL Fuse, Gray |
| 0705130 | 10A MiniVAL Fuse, Gray |
| 0705140 | 15A MiniVAL Fuse, Gray |
| 0705150 | 20A MiniVAL Fuse, Gray |
| 0705160 | 25A MiniVAL Fuse, Gray |
| 0705170 | 30A MiniVAL Fuse, Gray |
