CID2020-8.0-21 Drop In for Sumitomo 6189-0172 Female, 2 way, TS 312 (8.0) Series, Sealed, Gray
by Connector ID
Sold out
Original price
$2.30
-
Original price
$2.30
Original price
$2.30
$2.30
-
$2.30
Current price
$2.30
CID2020-8.0-21 is a 2-way female connector designed as a drop-in replacement for Sumitomo's TS 312 (8.0 mm) 8189-0172.
Sumitomo 6189-0172 Alternate Connector:
| Product Type: | Connector with terminal lock |
| Minimum Order Qty: | 1 piece |
| Part Number | CID2020-8.0-21 |
| Number of cavities: | 2 |
| Product Family: | 8.0 series |
| Sealed/Unsealed: | Sealed |
| Gender: | Female |
| Color: | Gray |
| Compliance: | RoHS, REACH |

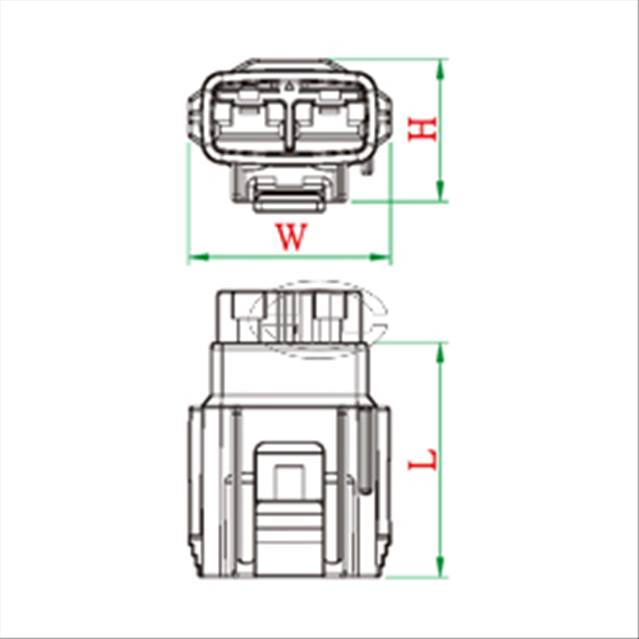

| Dimensions: | L: 33.3 mm / W:28.7 mm / H: 20.25 mm |
Associated Terminals
| Part Number | Description |
| CID200-8.0-FS1 | Female, 8.0 mm, 0.5-1.25 mm² (20-16 AWG), tin-plated |
| CID200-8.0-FS2 | Female 8.0 mm, 2.0 -3.0² (14-12 AWG) tin-plated |
| CID200-8.0-FS3 | Female, 8.0 mm, 5.0 - 8.0 mm² (10 AWG) tin plated |
Associated Wire Seals
| Part Number | Description |
| CID0683 | Wire Seal, 2.0-2.9 mm wire insul dia., (16-14 TXL), Dk Brown, Silicone |
| CID0400 | Wire Seal, 3.6 - 4.1 mm wire insul. dia., (10 TXL), Dk Gray, Silicone |
| CID0392 | Wire Seal 4.4 - 4.9 mm wire insul. dia., (8 TXL) Dk Blue, Silicone |
| CID0180 | Cavity Plug, Black |
Mating PN:
| Part Number: | CID2020-8.0-21 |
