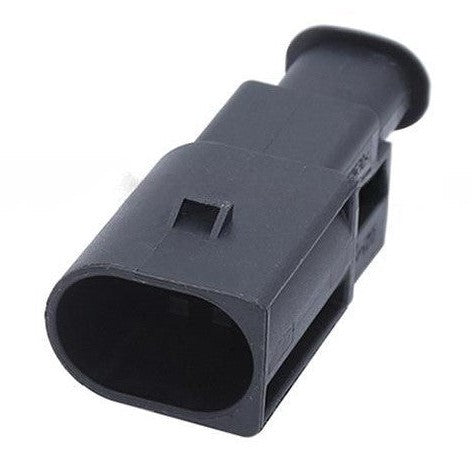

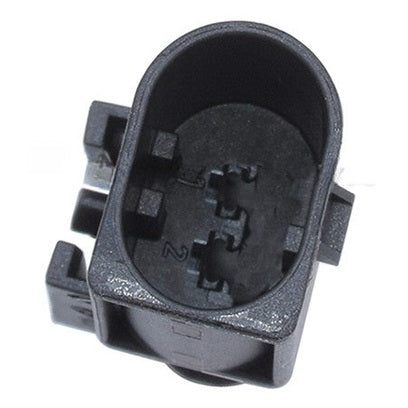

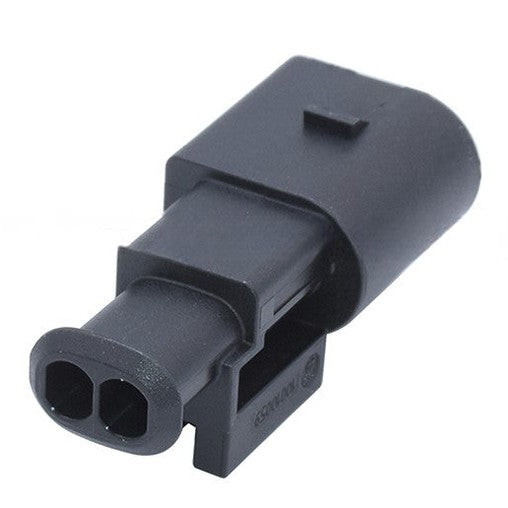

Kostal 10010059 2-way Male, 2.8 Series, Black, Code A

CID9020K-2.8-11 Kostal 10010059 2-way Male, SLK 2.8 Series, Black, Code A

by Connector ID
$0 USD
$2.65 - $2.65
$2.65 USD
$2.65 - $2.65
$2.65

CID9020-2.8-11 is Kostal's 2-way 10010059 male SLK 2.8 connector. This connector will mate to the 2-way horn connector on the Mercedes Sprinter.

Kostal 10010059 Details:

Product Type:  Connector
Minimum Order Qty:  1 piece
Part Number CID9020K-2.8-11
Number of cavities: 2
Product Family: 2.8 Series
Sealed/Unsealed: Sealed
Gender: Male
Code: A
Color: Black
Compliance:  RoHS, REACH

Associated Components:

Part Number  Description
CID900K-2.8-MS2 Term, 0.5 - 0.75mm² (20-18 AWG), Tin
CID900K-2.8-MS3 Term, 1.5- 2.5 mm² (16-14 AWG), Tin
CID4522 Wire Seal, 1.2 - 2.2 mm insul. dia. (20-18 AWG), Blue
CID4523 Wire Seal, 2.2 - 2.7 mm insul. Dia., (14-16AWG) Red Brown

Mating PN:

Part Number:   CID9A021-2.8-21
We have 189 in stock. Volume Pricing Available
