MTA offers 15 different modules and a variety of frames, covers, and brackets to build a wide range of flexible modular solutions for holding fuses, relays, and diodes. All modules are designed with secondary locks to guarantee maximum safety and high performance. They are built to resist stress and provide reliable technology.

Product Type:	Modular Power Distribution Unit
Minimum Order Qty:	1 piece
Brand:	MTA
Part Number	0301510
Number of cavities:	24
Design Layout:	(10) MiniVal Fuses + (1) ISO Maxi-Relay
Product Family:	Gray Modules
Sealed/Unsealed:	Unsealed
Gender:	Female
Color:	Gray
Compliance:	RoHS, REACH

Reference PN:

Part Number:

0101510

After marker kit

Associated Components:

DESCRIPTION	MTA PN
Secondary Lock, Yellow (1 reqd lock per module)	Included with module
2.8 mm Terminal 0.5 - 0.75 mm² (20-18 AWG)	1708330-L
2.8 mm Terminal 1.0 - 2.0 mm² (16-14 AWG)	1708331-L
2.8 mm Terminal 2.5 - 4.0 mm² (12 AWG)	1708332-L
2.8 mm Bus Bar Terminal 1.0 - 2.0 mm² (16-14 AWG)	1708335-L
2.8 mm Bus Bar Terminal 2.5 - 4.0 mm² (12 AWG)	1708336-L
6.3 mm Terminal 0.35 - 0.75 mm² (22-20 AWG)	1708500-L
6.3 mm Terminal 0.75 - 1.5 mm² (18-16 AWG)	1708501-L
6.3 mm Terminal 2.0 - 3.0 mm² (14-12 AWG)	1708502-L
6.3 mm Terminal 4.0 - 6.0 mm² (10 AWG)	1708503-L
9.5 mm Terminal 2.5 - 4.0 mm² (12 AWG)	1707740-L
9.5 mm Terminal 6.0 - 8.0 mm² (10-8 AWG)	1707741-L
9.5 mm Terminal 10.0 - 16.0 mm² (6 AWG)	1707442-L
Mounting Bracket for Single Module	0301580
Mounting Bracket for Two modules	0300699
Mounting Bracket, extended height	0301180
Mounting Brakcet, end-to-end	0301620
Mounting Frame for 4 module Flush Mount	0301520
Mounting Frame for 5 modules	0301450
Mounting Frame for 5 modules	0301706
Mounting Frame for 12 modules, Upright Mount	0301682
Mounting Frame for 12 modules, Flush Mount	0301680
Mounting Frame for 12 modules, Flush Mount	0301681
Cover for a single module	0301590
Cover for two adjacent modules	0301550
Cover for 4 way frame	0301530
Cover for 5 way frame	0301540

MiniVal Fuses:

MTA PN	Description
0705090	2A MiniVAL Fuse, Gray
0705100	3A MiniVAL Fuse, Voilet
0705101	4A MiniVAL Fuse, Pink
0705110	5A MiniVAL Fuse, Gray
0705120	7.5A MiniVAL Fuse, Gray
0705130	10A MiniVAL Fuse, Gray
0705140	15A MiniVAL Fuse, Gray
0705150	20A MiniVAL Fuse, Gray
0705160	25A MiniVAL Fuse, Gray
0705170	30A MiniVAL Fuse, Gray

Country

Country

10 mini fuses + 1 maxi relay

Refine

Products

Modules

10 mini fuses + 1 maxi relay

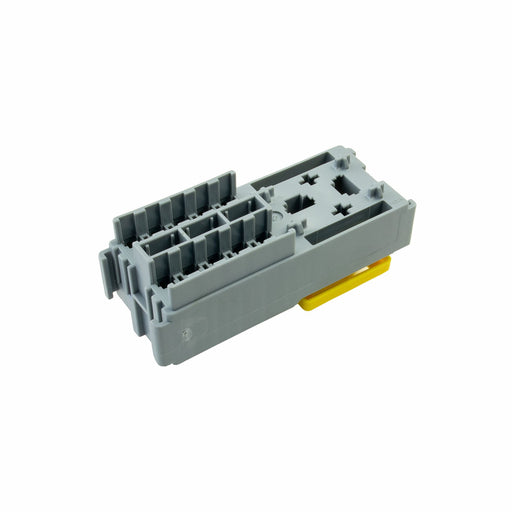

MTA 0301510 MiniVAL/Maxi Relay Module
