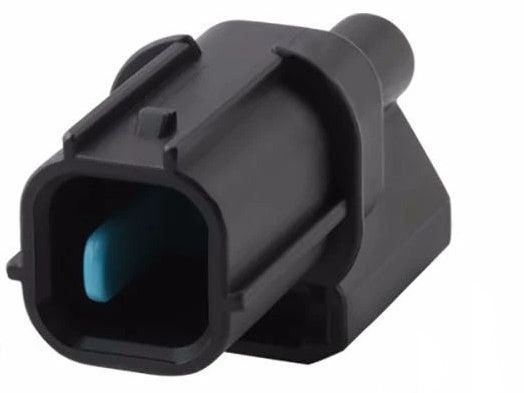

CID2011-2.3-11 Drop In for Sumitomo 6181-0803 Male Connector, 1 way HX 090 Sealed, Black

CID2011-2.3-11 Drop In for Sumitomo 6181-0803 Male Connector, 1 way HX 090 Sealed, Black

by Connector ID
Sold out
$0 USD
$2.25 - $2.25
$2.25 USD
$2.25 - $2.25
$2.25
Product Type:  Connector
Minimum Order Qty:  1 piece
Part Number CID2011-2.3-11
Number of cavities: 1
Product Family: 2.3 Series
Sealed/Unsealed: Sealed
Gender: Male
Color: Black
Compliance:  RoHS, REACH

Reference PN:

Part Number:   6181-0803 Sumitomo

Associated Components:

Terminal 0.3 - 0.5 mm² (22-20 AWG) CID201-2.3-MS1
Terminal 0.75 - 0.85 mm² (18 AWG) CID201-2.3-MS2
Terminal 1.25 - 2.0 mm² (14 AWG) CID201-2.3-MS3
Wire Seal, 1.1 - 1.7  mm wire dia., Gray  (22 AWG) CID1501
Wire Seal, 1.7 - 2.6  mm wire dia., Green (20,18,16 AWG) CID1341
Wire Seal, 1.9 - 2.8  mm wire dia., Yellow (18,16,14 AWG) CID1584
Cavity Plug, Green, Silicone CID1522

Mating PN:

Part Number:   6189-0591 Sumitomo
We have 0 in stock. Volume Pricing Available
